SOUNDER STROBE & STROBE LIGHT
>SOUNDER STROBE/ STROBE LIGHT
Please checkout our sounder strobe and stobe lights!

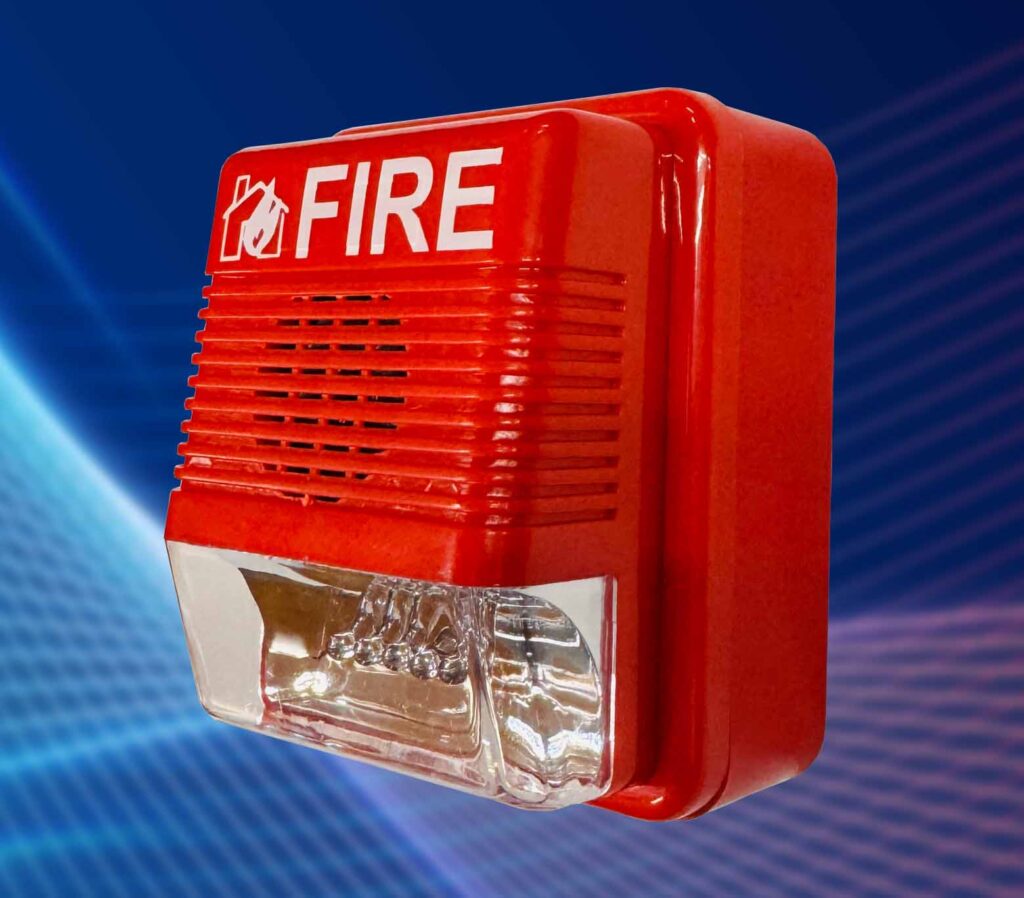

SOUNDER STROBE (MODEL : AVD-C408W & AVD-C408R)
Technical Specifications:
- Operating Voltage: 24Vdc ±15%
- Sounder Current: ≤ 7 mA (During Activation)
- Strobe Current: ≤ 20 mA (During Activation)
- Strobe Current: ≤ 20 mA (During Activation)
- Audible Alarm Output: 85db at 1m (Pulsating)
- Flash Rate: 1.64hz (0.61 second)
- Operating Temperature: Range -10°C to +50°C
- Relative Humidity: ≤ 95%, No Condensing
- Ingress Protection: IP52
- Weight: 190 gram
- Material of Housing: ABS Plastic
- Colour: AVD-C408W White Body, with Clear Lens AVD-C408R Red Body, with Red Lens
ELECTRONIC LED STROBE ( MODEL : AVD-C500 SERIES)
Technical Specifications:
- Model AVD-C501 : Clear Lens
- Model AVD-C502: Red Lens
- Model AVD-C503: Amber Lens
- Operating Voltage: 24VDC ±10%
- Current Consumption: ≤ 60 mA (During Activation)
- Flash Rate: 90 flashes per minute
- Operating Temperature: Range -10°C to +50°C
- Relative Humidity: ≤ 95%, No Condensation
- Ingress Protection: IP52
- Weight: 95 gram
- Material of Housing: ABS Plastic, with Plexiglas Lens
STROBE LIGHT (MODEL AVD-C501) c/w MOUNTING PLATE & BACK BOX
Technical Specifications:
- Strobe Model: AVD-C501 ( Clear Lens)
- Operating Voltage: 24VDC ±10%
- Current Consumption: ≤ 36 mA (Flashing During Activation)
- Flash Rate: 72 flashes per minute (± 10%)
- Operating Temperature: Range -10°C to +50°C
- Relative Humidity: ≤ 95%, No Condensation
- Ingress Protection: IP52
- Weight (Complete Unit): 232 gram
- Material: Strobe Light: ABS Plastic, with Plexiglas Lens Mounting Plate: Galvanized Steel Back Box: ABS Plastic
STROBE LIGHT (MODEL AVD-C502) C/W MOUNTING PLATE & BACK BOX
Technical Specifications:
- Strobe Model: AVD-C502 ( Red Lens)
- Operating Voltage: 24VDC ±10%
- Current Consumption: ≤ 36 mA (Flashing During Activation)
- Flash Rate: 72 flashes per minute (± 10%)
- Operating Temperature: Range -10°C to +50°C
- Relative Humidity: ≤ 95%, No Condensation
- Ingress Protection: IP52
- Weight (Complete Unit): 232 gram
- Material: Strobe Light: ABS Plastic, with Plexiglas Lens Mounting Plate: Galvanized Steel Back Box: ABS Plastic
